New In The AVIX Range: Swing Turnstiles With A Resource Of Up To 20 Million Operation Cycles And An Opening Speed Of 0.3 Seconds

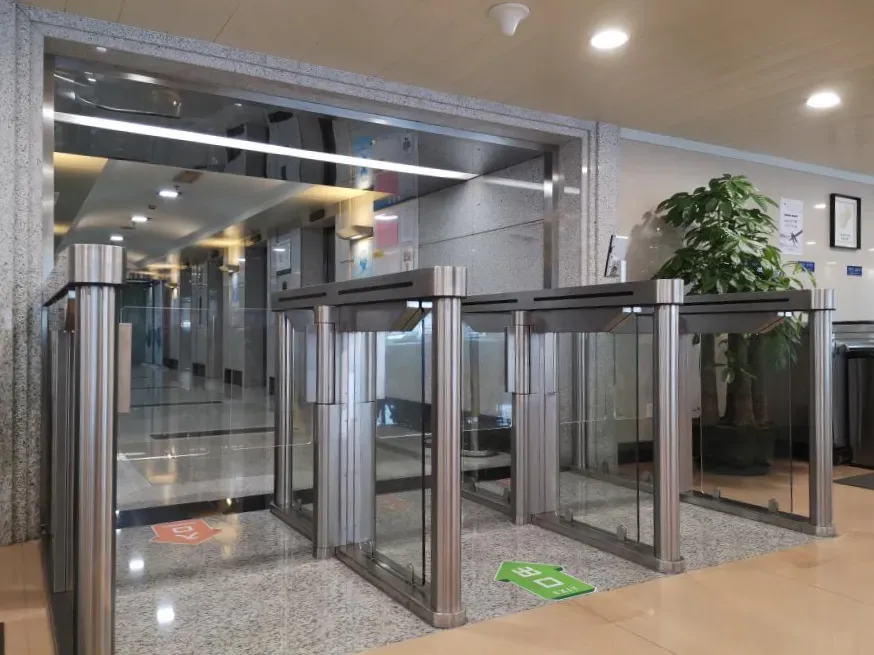

Automatic turnstiles AV.SG.6623 are distinguished by the variability of passage width from 600 to 1100 mm and operate under the control of any access control system.

Thanks to this, the model of the Russian brand AVIX can be used at various facilities, be it business centers, banks, museums, passenger transport hubs, etc. In addition, these automatic turnstiles are equipped with IR sensors to increase the level of security, support many automatic functions and are suitable for individual customization.

The AV.SG.6623 provides protection against repeated passage based on the “one card – one person” principle using a monitoring system based on 6 pairs of infrared sensors. In addition, these swing turnstiles support the burglary protection function, since their rotary mechanism is automatically blocked when an attempt is made to open the flaps manually, if the access control system does not receive a signal to unlock at that moment. At the same time, the AV.SG.6623 turnstiles ensure unimpeded passage of people (unlocking of the flaps) in the event of a power outage in accordance with fire safety requirements, as well as reliable protection against pinching, both mechanically and using IR sensors.

Long service life - up to 20 million cycles, stable and reliable operation of the turnstile, as well as low noise level, are ensured by the use of a DC servo drive in the AV.SG.6623 design. The vector control technology used in the design of the AV.SG.6623 allows for high performance of the turnstile motor, as well as a wide range and accuracy of opening speed control (max. 0.3 s). These swing turnstiles have a minimalist design without visible fasteners, and their body is made of stainless steel and meets the IP42 protection rating. It is worth noting that the AV.SG.6623 is capable of self-diagnostics, which greatly simplifies its maintenance.

The possibility of customization is a distinctive feature not only of the AV.SG.6623 turnstiles, but also of other AVIX models. At the same time, for the AV.SG.6623 model, you can choose the material for the doors: by default, they are made of acrylic, and optionally - of tempered glass. In addition, swing turnstiles have a place for installing a card/QR code reader, biometric terminal or other device, which allows you to integrate them into various access control systems, connect to toll and ticket systems, equip them with breathalyzers, etc.
